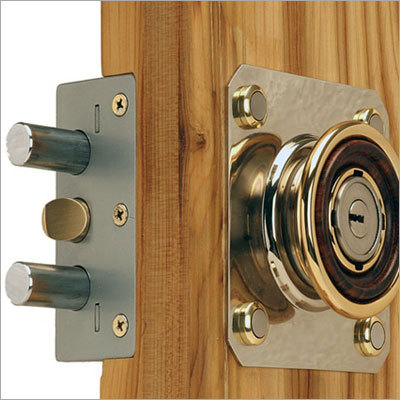

Wonder Door Bolt



<< Previous   Wonder Door Bolt
Product Description

Owing to our expertise in this domain, we are betrothed in offering an extensive range of Wonder Door Bolt. This bolt is suitable for doors from 30 to 40 mm & 40 to 52 mm in thickness.  The offered door bolt is manufactured using best-in-class raw-material stainless steel and brass with the help of cutting-edge technology. Precisely checked on various quality parameters, this Wooden Door Bolt is offered at the most reasonable price to the clients.

Features:

  • Easy-to-operate

  • Robust construction

  • High compressive strength

  • Non-corrosive body

Other information:

A new concept in multi utility rim locking systems. This high security lock has a unique knob system which can operate the latch from outside. This knob function can be easily turned off from inside to make it function like a regular night latch. In a situation when the door is operated very often by more then one person this rim lock is very useful. The mounted strength of the locking system is increased by the long screw-in-sleeve system, which holds the knob & the lock body sturdily together on either side of the door. The knob is made of reinforced sheet & solid brass for greater strength, meticulously polished to bring out the deep warm luster of brass used in combination with polished wood to create a brilliant combination.

The G5 wonder bolt rim lock system incorporates our unique pin cylinder lock working on 180 degree turn. This pin cylinder is specially designed for unlimited key variations, which ensures maximum security. The lock also incorporates a security chain for extra security. Heavy duty locking system for wooden doors hinged on the left or right, opening inward or outwards. Standard locking systems are suitable for doors from 30 to 40 mm & 40 to 52 mm in thickness. The lock operates on a pin cylinder mechanism. This product has a single throw deadbolt which is actuated by only half turn (180 degree) of the inside knob or outside key. The latch can also be operated from outside with key or the knob. The lock incorporates a security chain for added security.

Specifications:

  • Case : Steel case, powder coated finish; Case Depth 140mm; Backset 75mm.

  • Bolts : 2 nickel plated steel bar bolts; Bolt Length 34mm.

  • Striker : Steel case, powder coated finish.

  • Latch : Extruded brass section.

  • Pin Cylinder : High security pin cylinder with 5 nickel plated dimple keys; Cylinder operates on a 180 degree rotation.

  • Outside Knob : Reinforced sheet & solid brass with wooden ring.

  • Finishes : Brush brass, Brush steel, Brass antique, Full gold, Silver gold, Satin gold etc.; Protected by electrophoretic lacquer coating / plating.

  • Inside Knob : Extruded brass. Knob Height 28mm; Diameter 40mm.

  • Converter Button : Extruded brass.

  • Security Chain : Steel chain; nickel plated finish.

Product Code : 14
